Rugged Display Series

Application: Ground Vehicle

VPT-15HD-GVD-TPC18

Ultra-Wide Viewing Angles
MIL-STD-810G Environment
Picture-in-Picture Capability
Waterproof Design

The VPT-15HD-GVD-TPC18 is a high-performance rugged display built for military and defense applications. This 15.6” rugged monitor serves as a reliable ground vehicle display for demanding mission environments. This rugged ground vehicle display delivers full HD (1920 x 1080) resolution with a 1000:1 contrast ratio. The display produces sharp, clear images in both bright and low-light environments. Operators can rely on consistent visibility during critical operations. This ground vehicle display features a sealed aluminum enclosure with an IP65 rating. The design protects against dust and liquid exposure. Viewpoint also offers an actively cooled IP54 variant of this display. Both designs are ruggedized to withstand extreme environmental conditions, making it ideal for a wide variety of military vehicles. Whether used as a primary ground vehicle display or integrated into a larger system, this rugged display provides dependable performance. It combines durability, clarity, and reliability to support mission success in any environment.

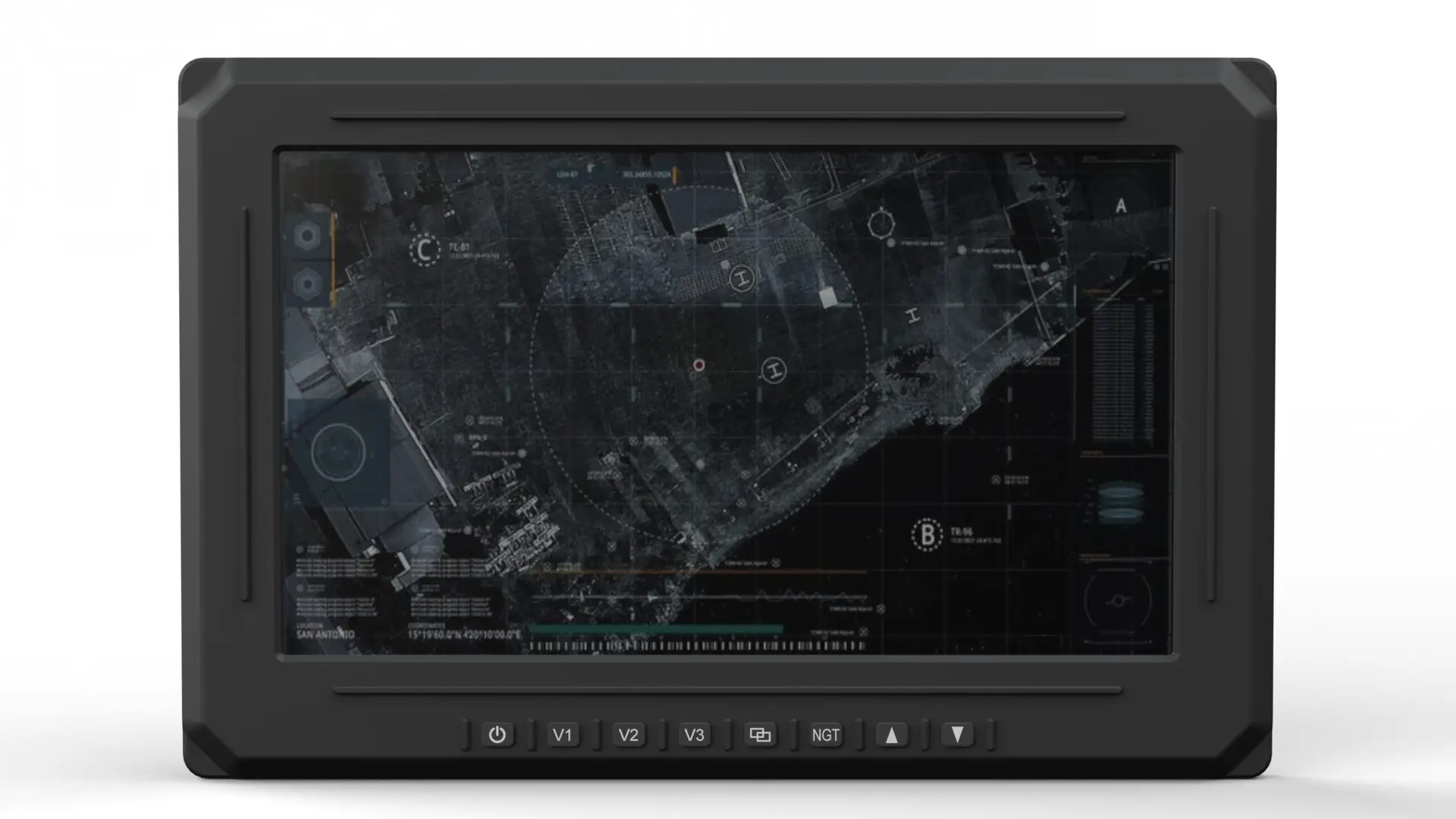

VPT-15HD-GVD-TPC18_Front 2

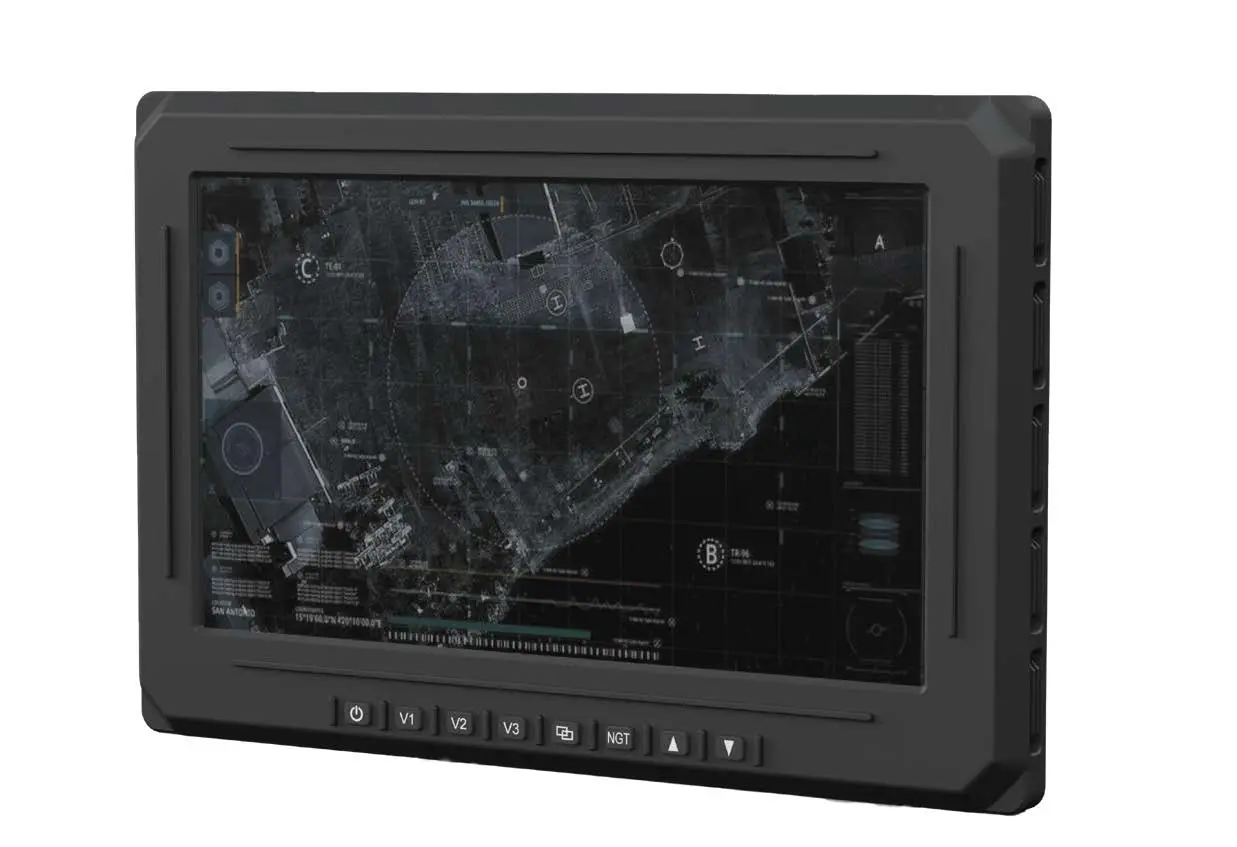

15HD-GVD-TPC18 data sheet_final

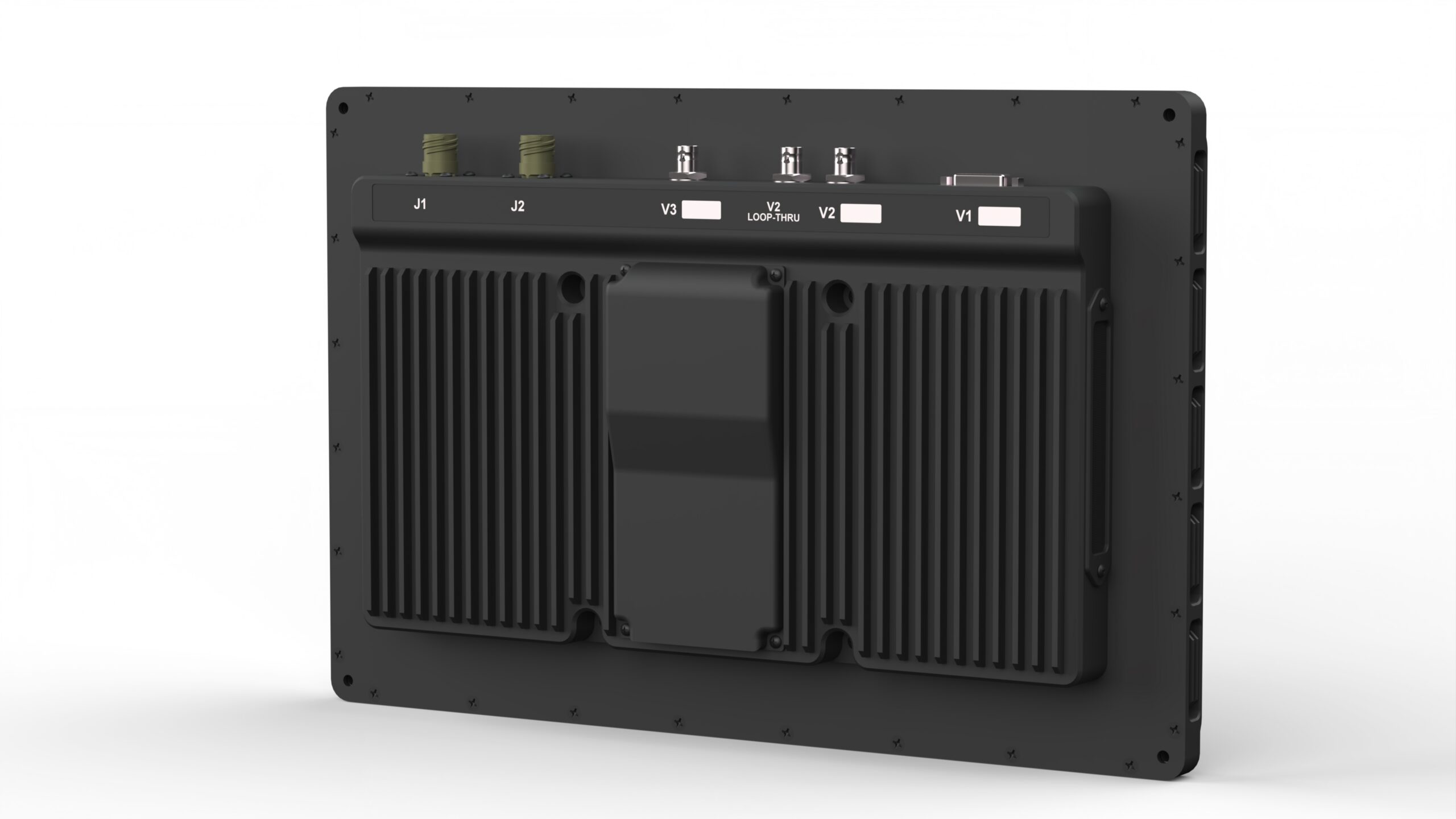

VPT-15HD-GVD-TPC18_Rear 2
Request a Data Sheet
Request a Quote

Product Features

  • 15.6” LCD with 1000:1 Contrast Ratio
  • 1920 x 1080 (Full HD) Resolution
  • LED Backlighting System
  • Ultra-Wide Viewing Angles
  • PCAP Touchscreen
  • DVI and HD-SDI Video Inputs
  • HD-SDI Loop-Thru Video
  • Shielded & Vented Option for IP54 Rating (Active Cooling)
  • Sealed Option for IP65 Rating (Passive Cooling)
  • MIL-DTL-38999 Circular Connectors for Power & COMM
  • MIL-STD-810G Operational Environment

Tech specs:

VPT-15HD-GVD-TPC18

Specifications
Panel Size
15.6 Inches
Resolution (Pixels)
1920 x 1080 (Full HD)
Backlight System
Custom LED Backlighting System
Brightness
900 cd/m² (also referred to as "Nits")** Note: Luminance Reduced on IP65 Sealed Variant
Aspect Ratio
16:9
Contrast Ratio
1000:1
Vertical Viewing
± 89°
Horizontal Viewing
± 89°
Video Inputs
(1) DVI, (2) HD-SDI
OSD
On-Screen Display
Mounting
Rear Mount (Included), Console or Panel Mounting Configurations Available Upon Request
Power Input
+28VDC
Power Consumption
55W MAX
Operating Temperature
-20° to +55° Method 501.5 & Method 502.5 Procedure II MIL-STD-810G
Storage Temperature
-40° to +70° Method 501.5 & Method 502.5 Procedure I per MIL-STD-810G
Relative Humidity
Operating & Storage: 95% @ 40° for 48 hours
Vibration
Method 514.6 Category 20 Procedure I per MIL-STD-810G
Shock
Method 516.6 Procedure I per MIL-STD-810G
EMI/EMC
CE102, CS101, CS114, CS115, CS116, RS103 per MIL-STD-461F
Ingress Protection
IP54 Active Cooling or IP65 Passive Cooling (Sealed)
Altitude Operating
Not Applicable
Altitude Storage
Method 500.5 Procedure I 40,000 feet per MIL-STD-810G
Sand & Dust
Method 510.5 Procedure I and II per MIL-STD-810G
Salt Fog
Method 509.5 per MIL-STD-810G
Fungus
Method 508.6 per MIL-STD-810G
Mean Time Between Failure (MTBF)
Minimum 40,000 hours
Mean Time To Repair (MTTR)
Greater than 7 Years
NVIS Compatibility
Dual mode Class B per MIL-STD-3009 (Available Upon Request)
Touchscreen
PCAP (Included)
LCD Heater
LCD Heater for Extended Low Temperature Operations -40°C (Available Upon Request)
Mounting
Rear Mounting (Included), Console or Panel Mounting Configurations (Available Upon Request)
Bezel Buttons
Not Available
Remote Control
Remote RS-232 Control of the Display (Available Upon Request)
EMI/EMC
Enhanced EMI Protection, Includes EMI Reducing Cover Glass and Conductive Gaskets (Available Upon Request)
Extended Warranty
Extended Warranty up to 3 Additional Years for 5 Years of Maximum Coverage (Available Upon Request)
