Rugged Display Series

Application: Airborne

VPT-3ATI-MIL-B

Programmable Multi-function Bezel Buttons
Designed to Meet MIL-STD-810G Environment
Sunlight Readible

The VPT-3ATI-MIL-B is a compact, rugged 3” smart display engineered for embedded mission-system and tactical control applications where size, weight, and reliability are critical.  Featuring a high-bright 480 x 480 LCD with 700-nit brightness, optical bonding, and anti-reflective coated cover glass, the VPT-3ATI-MIL display delivers excellent readability in demanding operational environments.  Designed for harsh military and aerospace applications, the unit supports a wide operating temperature range and incorporates rugged MIL-style circular connectors for Power, Ethernet, and USB.  Additional features include (8) backlit tactile bezel buttons, active embedded processing capability, corrosion-resistant mechanical packaging, and a compact low-profile design optimized for next-generation mission-system integration efforts.

VPT-3ATI-MIL-B_8[1]

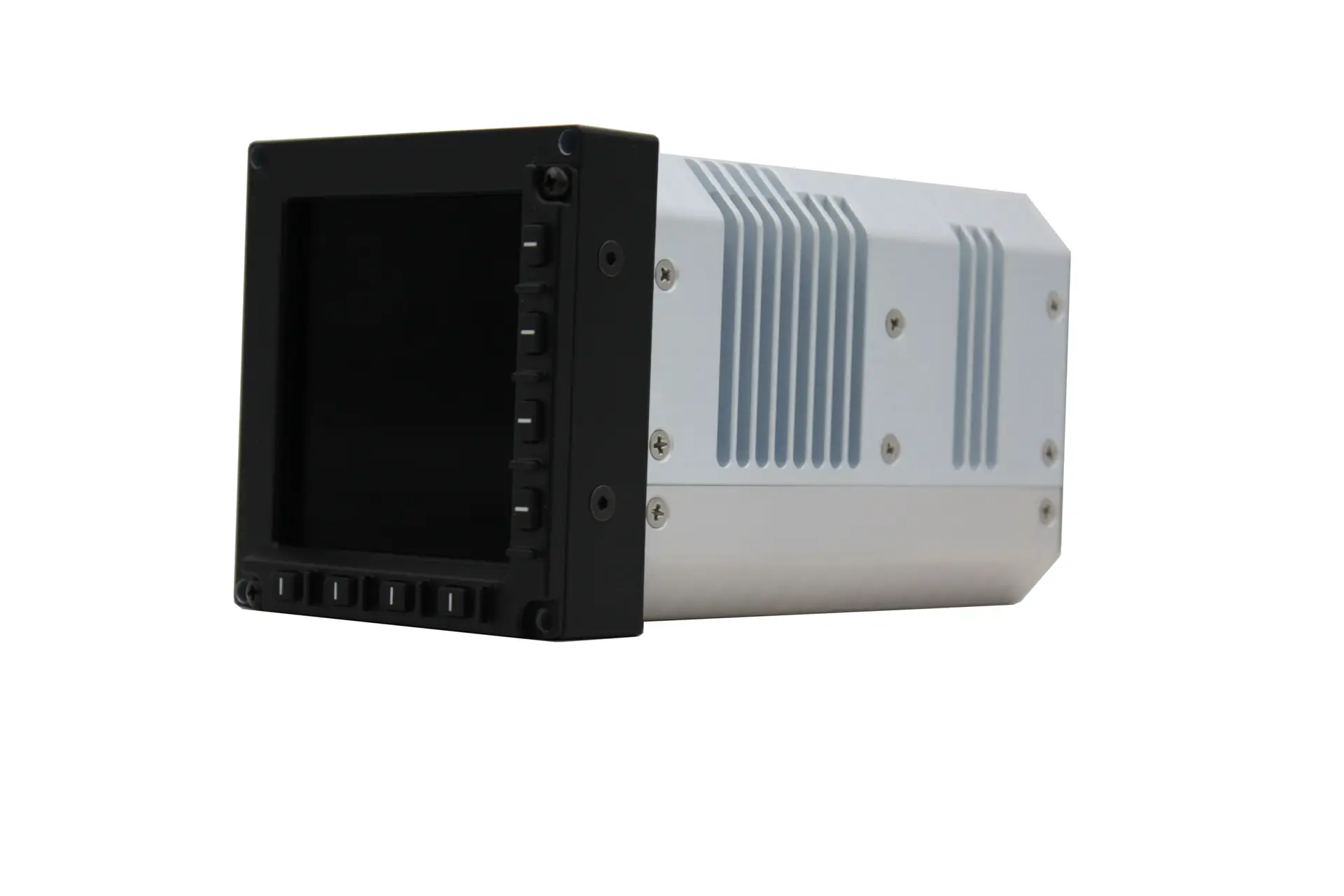

VPT-3ATI-MIL-B_1[1]
Request a Data Sheet
Request a Quote

Product Features

  • Standard 3ATI Mechanical Envelope
  • Compact 4.75″ Depth (Behind the Panel)
  • Custom LED Backlighting System
  • 700:1 Contrast Ratio
  • Programmable Multi-Function Buttons
  • ARM-Based Processor with Support for Linux Operating System
  • OpenGL Graphics Capability
  • Designed to Meet DO-160 / MIL-STD-810G Environmental Standards
  • API Controlled Brightness and Contrast
  • (1) D38999 Ethernet / (1) RJ45 Ethernet

Tech specs:

VPT-3ATI-MIL-B

Specifications
Panel Size
3.4 Inches
Resolution (Pixels)
480 x 480
Backlight System
Custom LED Backlighting System
Brightness
900 cd/m² (also referred to as "Nits")**
Aspect Ratio
1:1
Contrast Ratio
700:1
Vertical Viewing
± 85°
Horizontal Viewing
± 85°
Video Inputs
Not Applicable
OSD
Not Applicable
Mounting
Front Panel Mounting Configuration
Power Input
+28VDC
Power Consumption
< 12W
Operating Temperature
-20° to +55° Method 501.5 & Method 502.5 Procedure II MIL-STD-810G
Storage Temperature
-40° to +70° Method 501.5 & Method 502.5 Procedure I per MIL-STD-810G
Relative Humidity
Operating & Storage: 95% @ 40° for 48 hours
Vibration
Method 514.6 Category 13 Procedure I per MIL-STD-810G
Shock
Method 516.6 Procedure I per MIL-STD-810G
EMI/EMC
CE102, CS101, CS114, CS115, CS116, RS103 per MIL-STD-461F
Ingress Protection
IP64
Altitude Operating
Method 500.5 Procedure I 30,000 feet per MIL-STD-810G
Altitude Storage
Method 500.5 Procedure I 40,000 feet per MIL-STD-810G
Sand & Dust
Method 510.5 Procedure I and II per MIL-STD-810G
Salt Fog
Method 509.5 per MIL-STD-810G
Fungus
Method 508.6 per MIL-STD-810G
Mean Time Between Failure (MTBF)
Minimum 40,000 hours
Mean Time To Repair (MTTR)
Greater than 7 Years
NVIS Compatibility
Not Available
Touchscreen
Not Available
LCD Heater
Not Available
Mounting
Front Panel Mounting Configuration (Included)
Bezel Buttons
Multi-Function Bezel Buttons (Included)
Remote Control
Not Available
EMI/EMC
Enhanced EMI Protection, Includes EMI Reducing Cover Glass and Conductive Gaskets
Extended Warranty
Extended Warranty up to 3 Additional Years for 5 Years of Maximum Coverage
